M2-3 Zoning is a Medium Manufacturing Zoning district in NYC. The M2-3 Zoning District is limited to manufacturing and some commercial uses.
The M2-3 Zoning District is a sub district of M2 Zoning in NYC. M2 is a Medium Manufacturing Zoning District having manufacturing and limited commercial uses. M2-3 Zoning is mapped in Manhattan along the East and West Waterfronts.
M2-3 Zoning Regulations
The New York City Zoning Resolution is complicated and quite in depth. In this article we will review some basic Zoning Codes with regards to manufacturing zoning district M2-3. This analysis does not assume to cover every possible issue, but provide a general overview of the zoning codes.
M2-3 Zoning Specifications
M2-3 Floor Area Ratio (FAR):

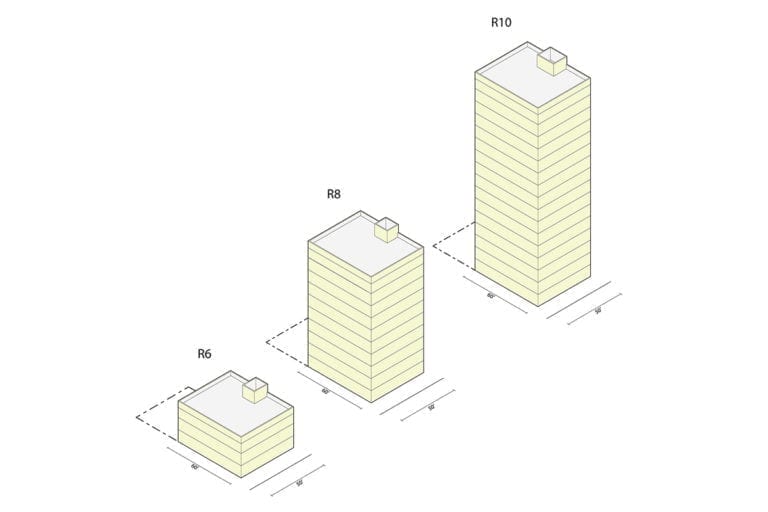

Floor Area Ratio determines the floor area that can be built on the property.
FAR = 2
Yard Requirements for Commercial Use in M2-3
Side Yards
Side Yards are not required, but if side yards are provided it must be at minimum 8 feet wide.
Rear Yard
20 Foot rear yard required
M2-3 Height And Setback
Initial Setback Distance
20 feet on narrow street
15 on wide street
Building Height Within Initial Setback Distance = 60 feet or 4 stories whichever is less
Sky Exposure Plane Vertical to Horizontal
Narrow Street Sky Exposure Plane = 2.7 to 1
Wide Street Sky Exposure Plane = 5.6 to 1
M2-3 Alternate Height And Setback
Alternate height and setback regulations can apply if you provide open space for the entire length of the front lot line.
Depth Of Optional Front Yard
15 feet on narrow street
10 on wide street
Sky Exposure Plane Height Above Street Line = 60 feet
Sky Exposure Plane Vertical to Horizontal
Narrow Street Sky Exposure Plane = 3.7 to 1
Wide Street Sky Exposure Plane = 7.6 to 1
Thank You for reading our Blog Post on M2-3 Zoning in NYC.
I hope this was helpful. You can leave questions or comments below. If you want to discuss a specific project with an architect you can contact us directly.
